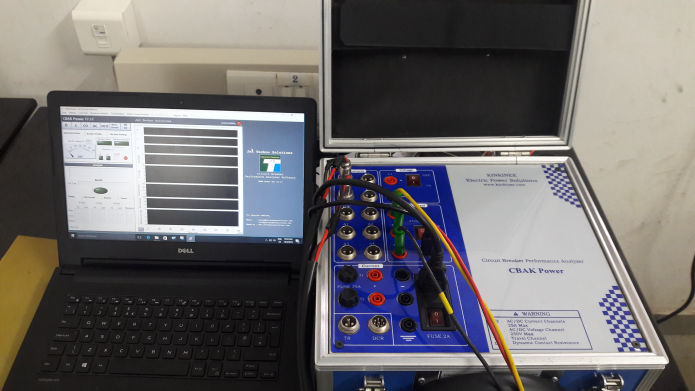

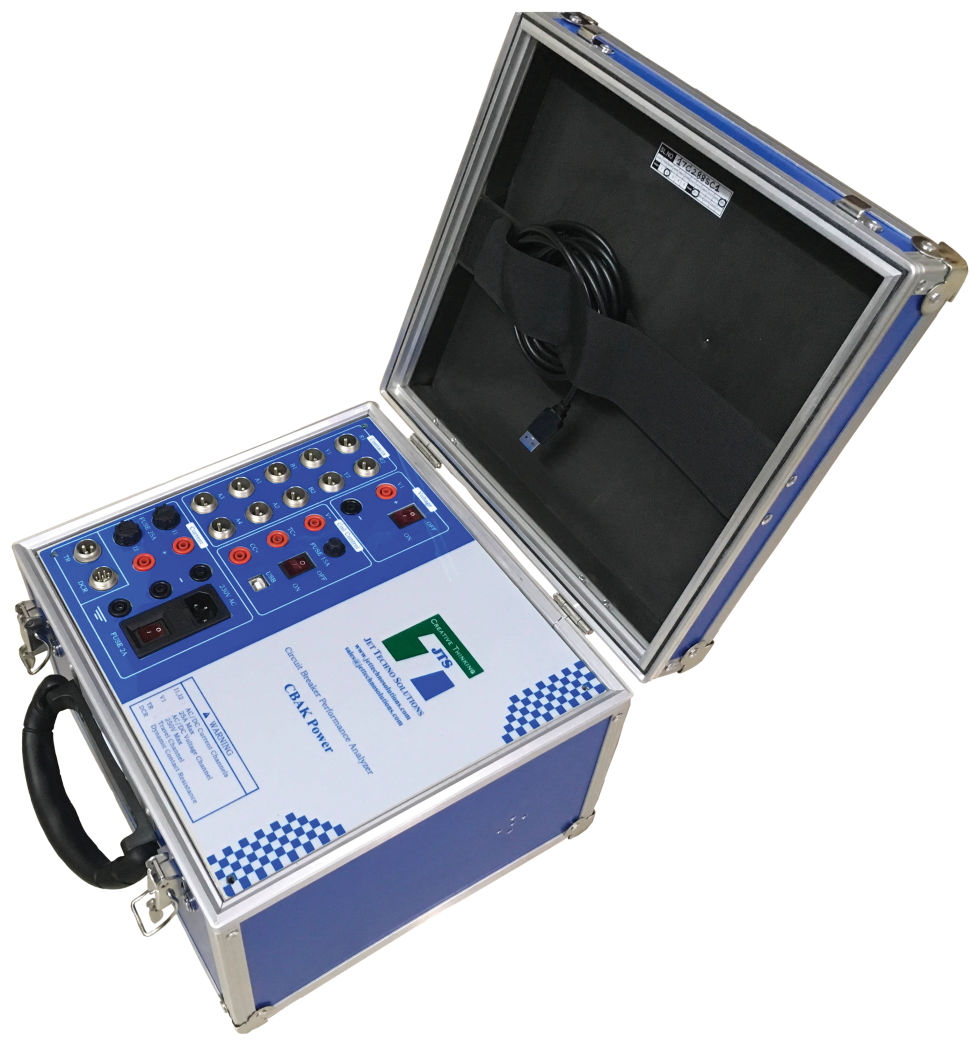

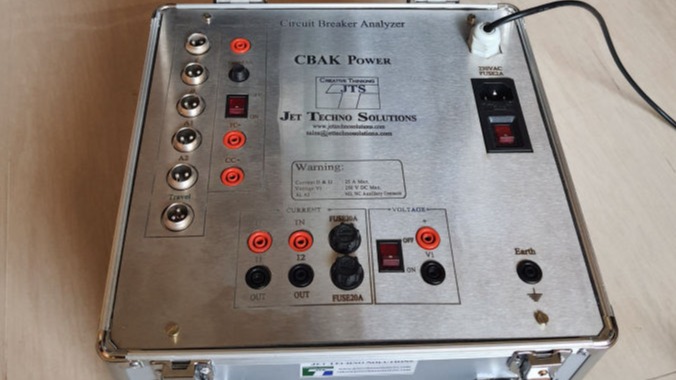

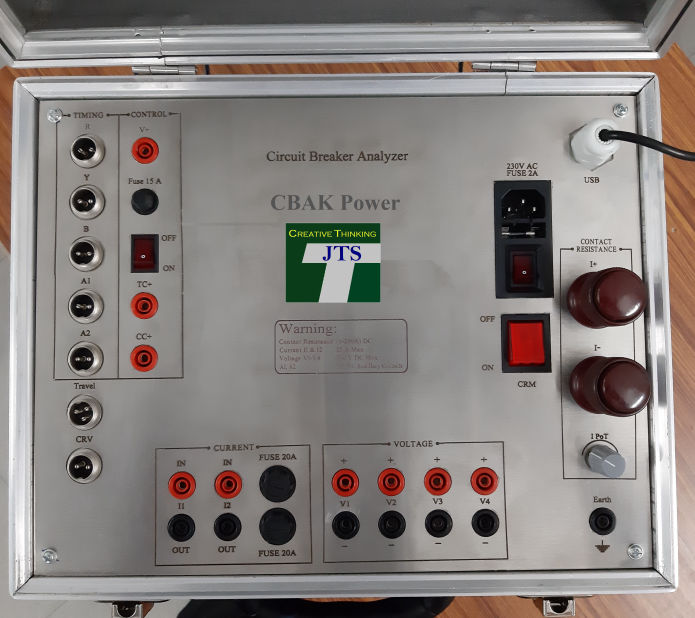

CBAK Power is an Advanced system suitable for testing Medium and High Voltage Circuit Breakers. It can be used for both 11-33 kV MV circuit breakers and also for 110-400 kV HV circuit breakers. It is also suited for both spring operated and magnetic actuator operated high voltage circuit breakers. It is a compact, light weight test kit easily connected with USB interface of PC.
Integrated system for both magnetic actuator and spring operator circuit breakers.
Measures capacitor status, FET on/off timings, trip and close currents of magnetic actuator operated VCBs
Simultaneous measurement and analysis of DC Voltage, Motor current , auxiliary contact timings.
Portable, light weight and compact instrument,easy to carry for field testing
Graphical display and Measurement of RYB contact timings, coil current, motor current, supply voltage and magnetic actuator current waveforms with zooming facility.
Display of hardware communication status and circuit breaker contact status.
Measurement of bounces, bounce duration, Mismatch between poles during opening and closing, travel speed, coil supply DC voltage, Magnetic actuator tripping and closing coil current.
O, C, CO, OC, OCO operations and mechanical endurance testing
