Contact Resistance Meter

Models : CRAK 100S & CRAK 200S & CRAK 100D

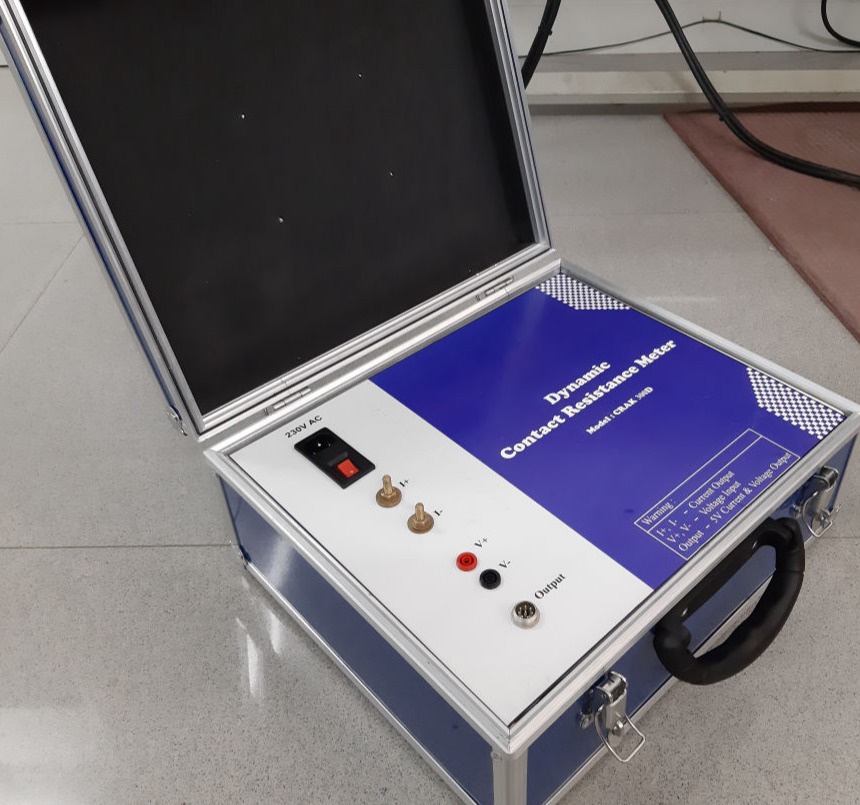

Jet Techno Solution Supplies static (CRAK 100S and CRAK 200S) and dynamic contact resistance (CRAK 100D) measurement kits of circuit breakers of rating from 11 kV to 765 kV. CRAK 100D is a separate module which is to be interfaced with main unit CBAK Power or CBAK Ultra.

CRAK Models are based on advanced embedded processor units with PC interface and user friendly operations and fast results. Useful for measuring contact resistance of circuit breakers, busbars, panels.

Based on the customer requirement, 100 A and 200 A DC current source based modules are designed.

Configuration : 2 channels each for single pole resistance measurement & test current measurement

Range : 10 to 500 micro ohms
Current Range : 1 X 100A/200A DC
Input Supply : 230 V AC, 50 Hz
