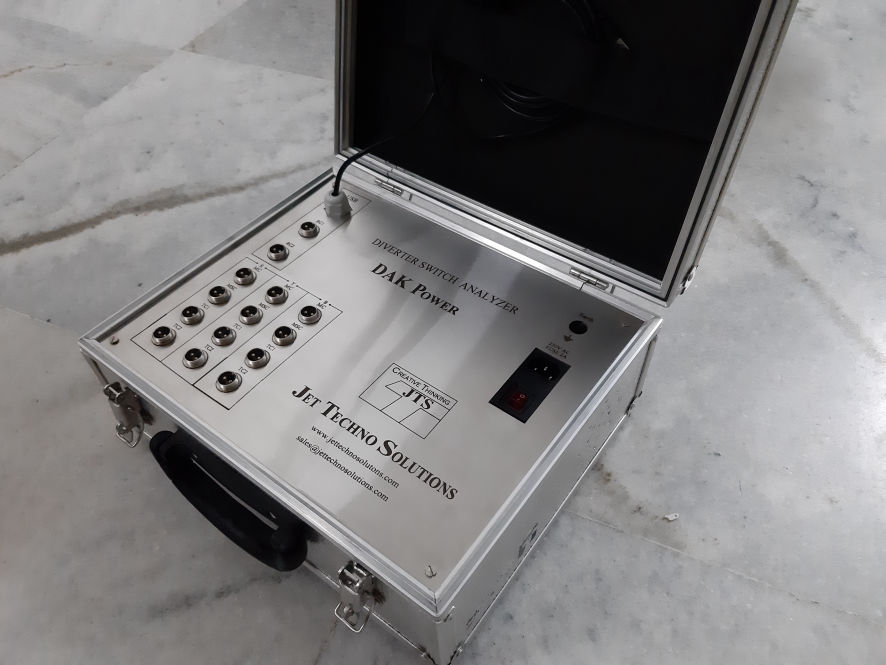

OLTC Diverter Switch Analyzer

This kit is used to estimate the timing performance of diverter switch in OLTC.
It calculates all timings of diverter switch of onload tap changer such as main contact timing, main switching contact timing, transition contact timings, bounces, etc.
It measures the timings of all three phases simultaneously and in a single shot it displays all results and reports.
